Brief introduction
Multi -stage centrifugal pumps are a mechanical device consisting of two or more centrifugal pumps capable of performing the same or different functions. Its channel structure allows the medium to be pumped in a cascading way from one pump to the following. This design allows a multi -stage centrifugal pump to increase the pressure of the fluid in stages, which makes it ideal for pumping liquids under high pressure.
Technical characteristics of the product:
|
Model |
Strength |
The highest pressure |
Maximum consumption |
size |
Suction height |
Gross weight |
Wrap |
|
|
KW |
horsepower |
rice |
l/min |
inch |
rice |
kilogram |
quantity |
|
|

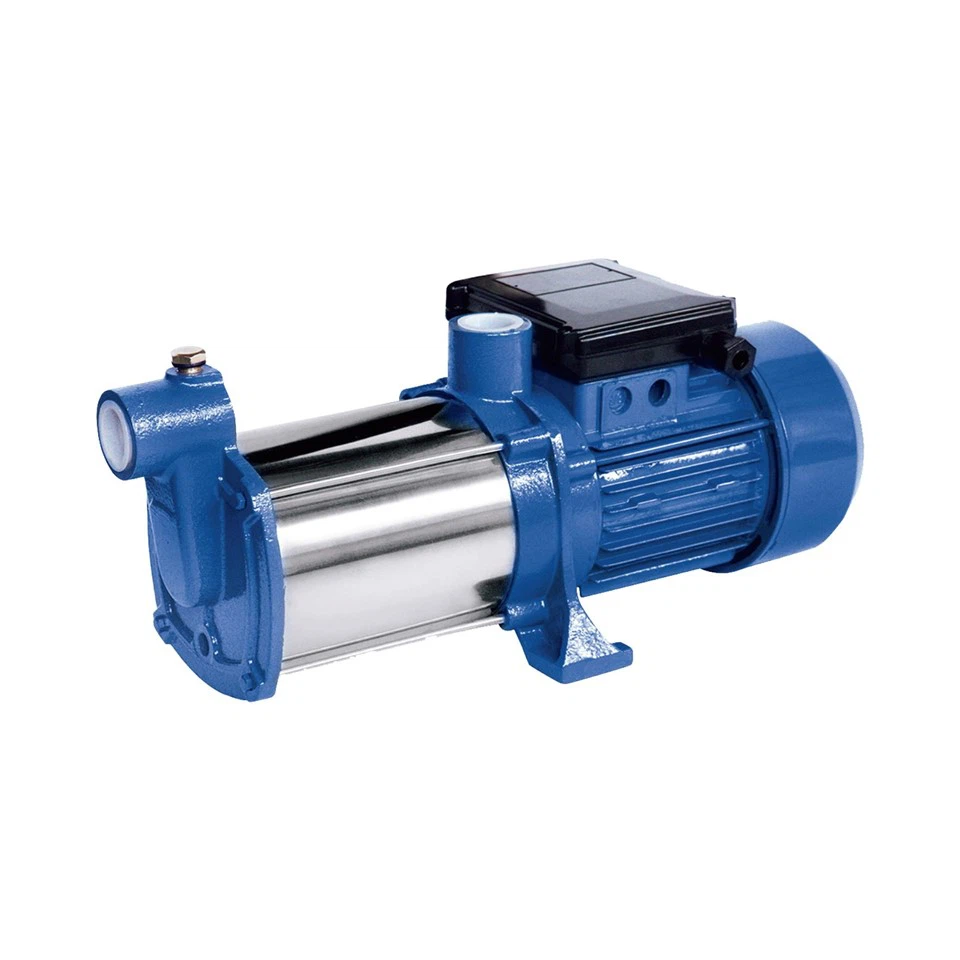

SCM 2-50 |
0.75 |
1 |
35 |
90 |
1.25 "× 1" |
8 |
18.8 |
1800 |
|
SCM 2-52 |
1.1 |
1.5 |
40 |
100 |
1.25 "× 1" |
8 |
22.4 |
700 |
|
SCM 2-60 |
1.5 |
2 |
50 |
100 |
1.25 "× 1" |
8 |
24.5 |
700 |
|
SCM 2-68 |
2.2 |
3 |
58 |
140 |
1.5 "× 1.25" |
8 |
31 |
510 |
|
Model |
DN flange |
consumption (Brand ³/ha) |
Head (m) |
Strength (kW) |
Model |
DN flange |
consumption (Brand ³/ha) |
Head (m) |
Strength (kW) |
|

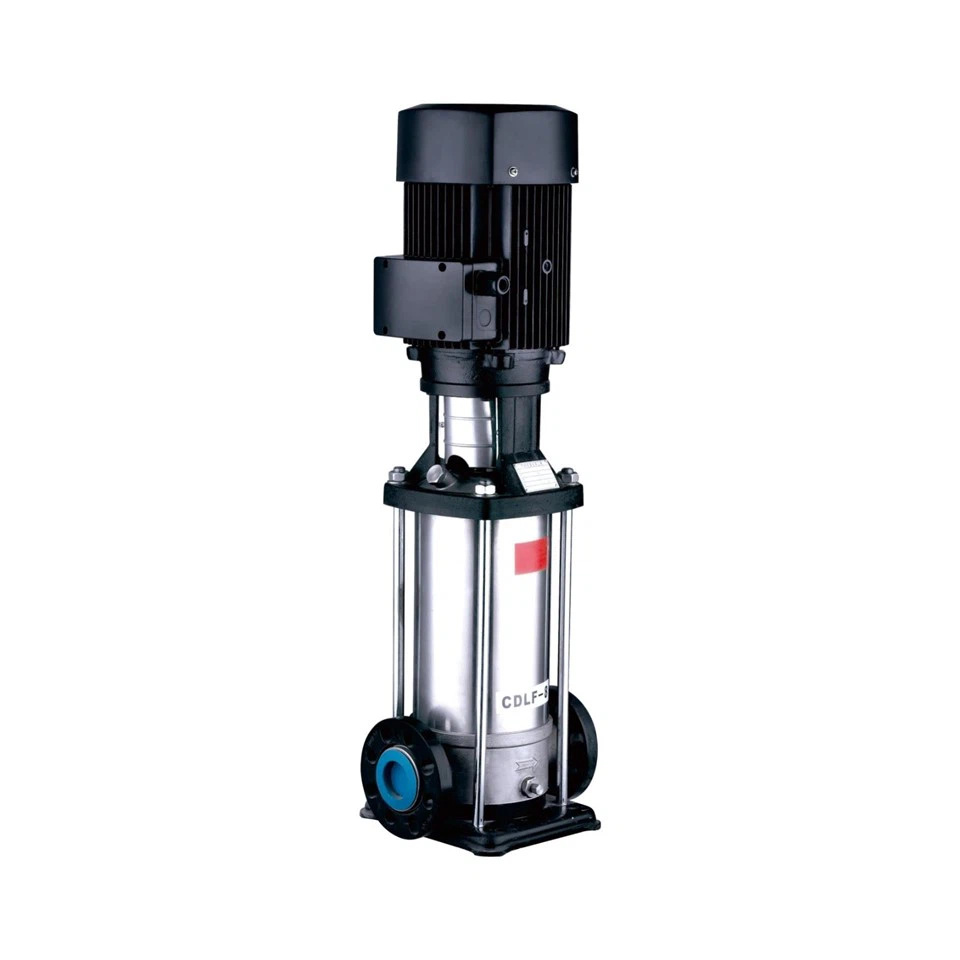

CDL (f) 2-20 |
25 |
2 |
15 |
0.37 |
CDL (f) 3-80 |
25 |
3 |
37 |
0.75 |
|
CDL (f) 2-40 |
25 |
2 |
30 |
0.55 |
CDL (f) 3-120 |
25 |
3 |
55 |
1.1 |
|
CDL (f) 2-60 |
25 |
2 |
45 |
0.75 |
CDL (f) 4-160 |
32 |
4 |
129 |
3 |
The above table is only a partial model, more detailed information about the product can be found in our brochure.
advantage
- High pressure: multi -stage centrifugal pumps work with several working wheels connected sequentially, providing high general pressure. Suitable for high buildings, water treatment, deep mines, water supply of ships and other similar applications.
- Large consumption, stable pressure: thanks to the multi -stage connection of the working wheels, the pump can provide a stable output, guaranteeing the reliable operation of the pump.
- Widespread use: suitable for use in industry, construction, city pipelines and other areas, for pumping water or other liquids under high pressure and large volume, especially for cases with high pressure and long gorge distances.
